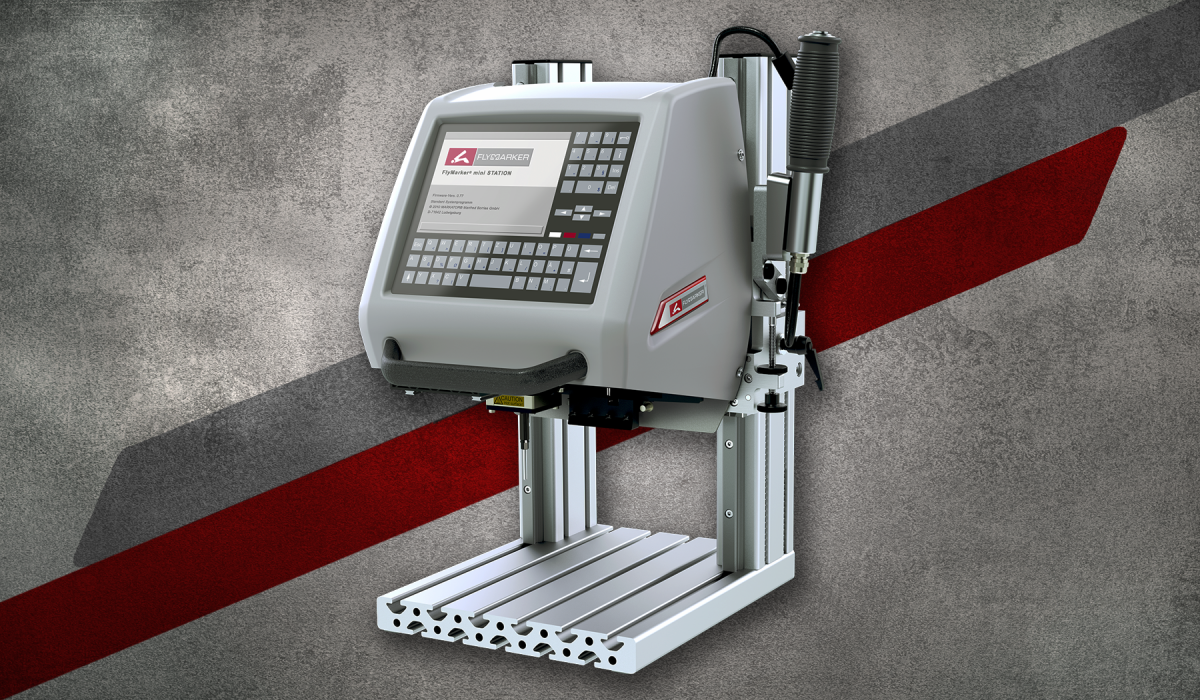

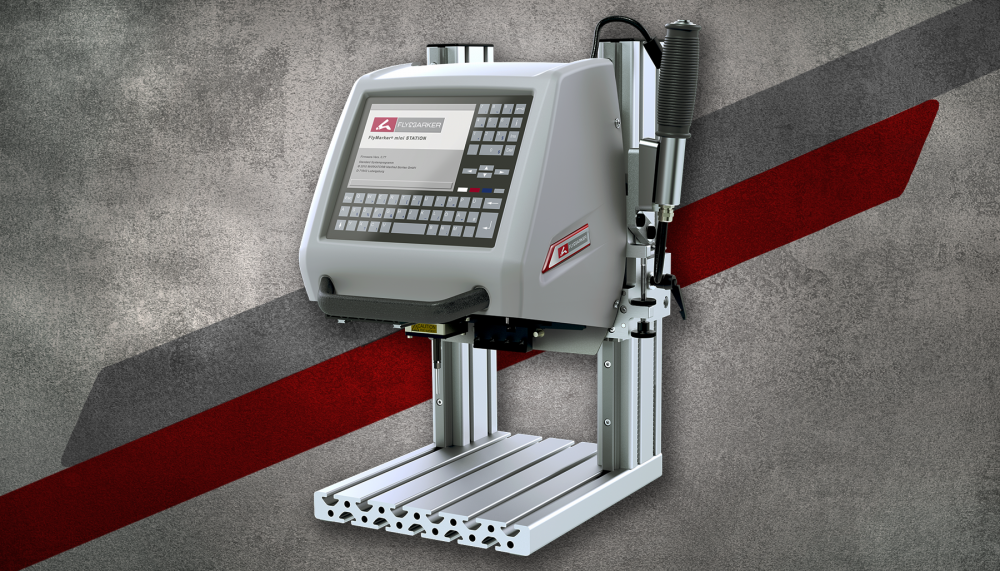

The fully electrically operated benchtop marking system FlyMarker mini 120/100 STATION impresses with its simple handling: Set up. Plug in. Start marking!
The FlyMarker mini 120/100 STATION is equipped with a very user-friendly interface and has a large marking field of 120 x 100 mm. Due to its integrated control, the benchtop marking device as an all-in-one system is the ideal partner for your workshop. Its high-quality guide system gives it maximum stability and ensures high marking quality. The system is rounded up by its attractive price-performance ratio.
Marking area (x/y): 120 x 100 mm
Available character heights: 1,0 to 99,9 mm
Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)
Drive of the marking pin: Electromagnetic
Available characters: Numbers 0 - 9, capital letters / small letters A - Z; a - z various punctuation marks. , / etc.
Interface: USB-A, Ethernet
Height tolerance compensation: Up to max. 5 mm (constant marking depth also on uneven surfaces)
Marking force: 30 possible force settings(constant impact performance through the complete battery runtime)
